Applications Residential & commercial buildings Industrial and high-rise construction Infrastructure projects requiring fast turnover Why Choose Our System? Reduce project duration by 30–50% Save on labor and material costs Improve site safety with clean, organized workflows Optimize...

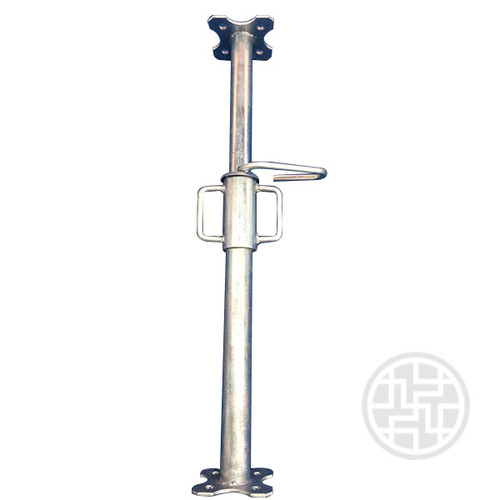

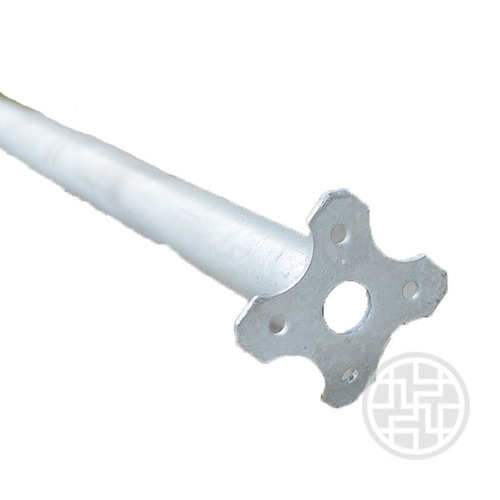

Specifications Min Height Max Height Inner Tube Outer Tube Pin Type Base Plate Top Plate Material Surface Finish 1.7m 3.0m 40×2.0mm / 48×2.0mm 48×2.0mm / 56×2.0mm G Pin Square / Flower Square / Flower / U-head Q235/Q195 Painted / Electro Galvanized / Hot Dip Galvanized / Powder Coated 1.8m 3.2m 40×2.0mm...

Specifications Min Height Max Height Inner Tube Outer Tube Pin Type Base Plate Top Plate Material Surface Finish 1.8m 3.2m 48×2.0mm 60×2.0mm G Pin Square / Flower Square / Flower / U-head Q235/Q195 Painted / Electro Galvanized / Hot Dip Galvanized / Powder Coated 2.0m 3.6m 48×2.0mm 60×2.0mm G...

Specifications (Customizable): Material: Q235/Q195 Outer Tube Diameter: e.g., 60mm / 76mm Inner Tube Diameter: e.g., 48mm / 60mm Adjustable Height: e.g., 1.6–3.0m, 2.0–3.5m, or customized Surface Finish: Powder Coated / Galvanized Load Capacity: Up to 40kN (depending on model) Accessories:...

Main Advantages Increased Productivity: Lightweight and user-friendly, enabling a single worker to perform tasks that would normally require two or more. High Durability: Aluminum frames resist site damage, are reusable, and suffer less wear even after repeated use. Superior Versatility: Easily adapts...

It also reduces the cost of filler strips and minimizes material wastage by being able to easily move the form up against one wall and only use filler strips on the other side.

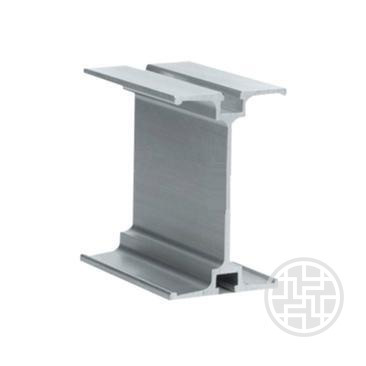

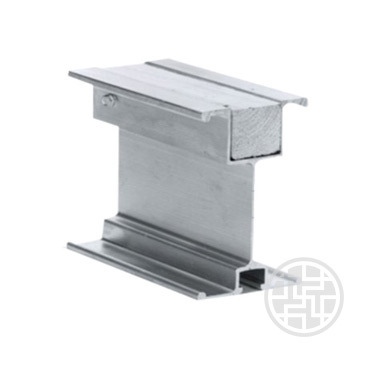

Technical Specifications Item Data Height 140mm Top Flange Width 82mm Bottom Flange Width 89mm Thickness 3.1mm Weight 4.6kg/m Material 6351-T6 Aluminum Alloy Tensile Strength 310MPa Yield Strength 260MPa Elongation 11.5% Elasticity Modulus 70300 N/mm² Inertial Moment 40600 mm⁴ Inertial...

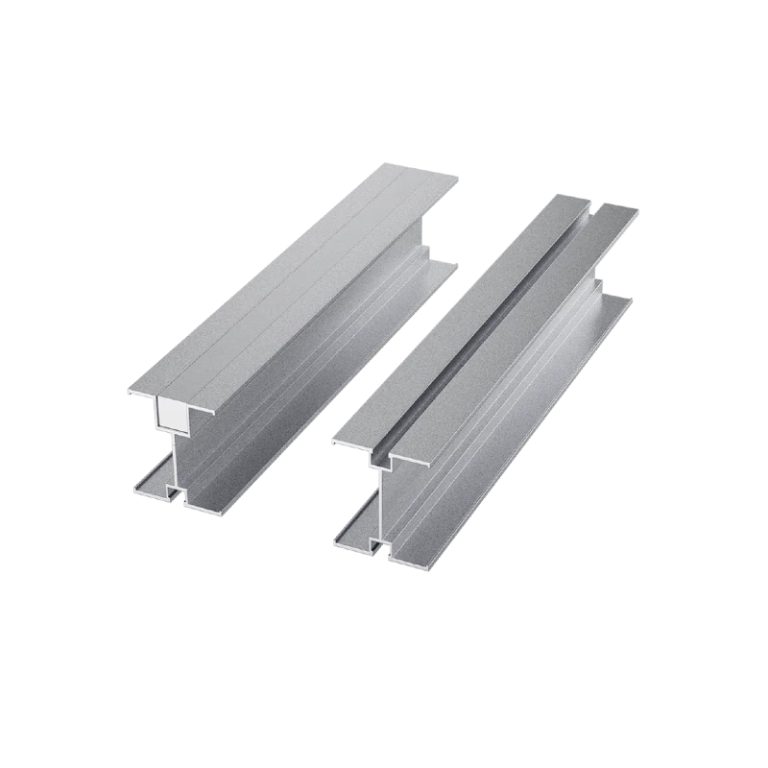

Technical Specifications Item Value Height 185mm Width 100mm Thickness 5.1mm Weight 6.354kg/m Material 6351-T6 High Strength Aluminum Alloy Tensile Strength 300MPa Yield Strength 270MPa Elongation 17.5% Elastic Modulus 70300N/mm² Section Modulus 136000mm³ Moment of Inertia 1...

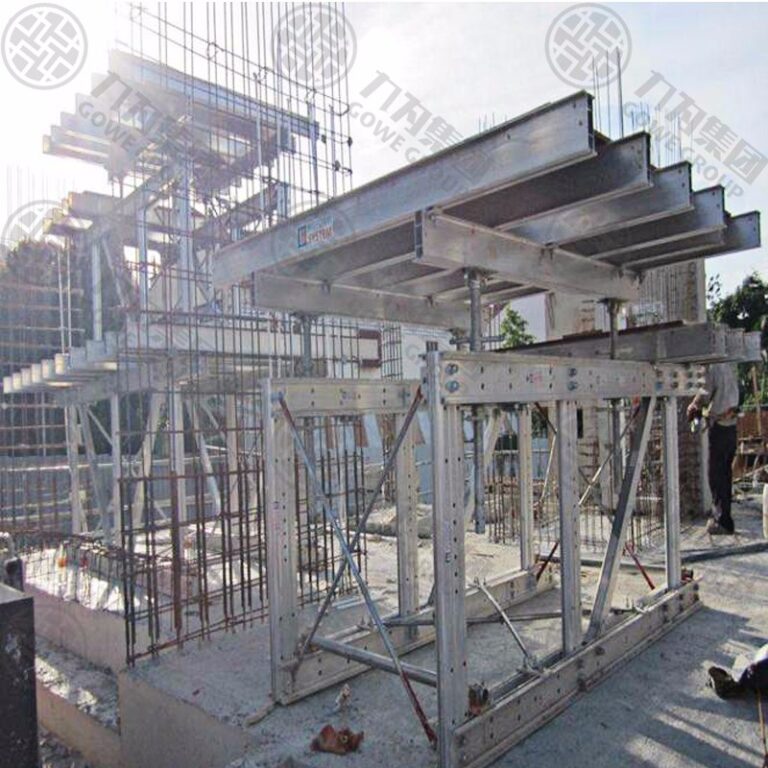

Precision-engineered, the aluminum alloy beam system is widely used in structural construction, delivering reliable support and outstanding stability. It excels in demanding environments due to its lightweight, corrosion resistance, and ease of installation, making it an ideal choice for high-rise buildings,...

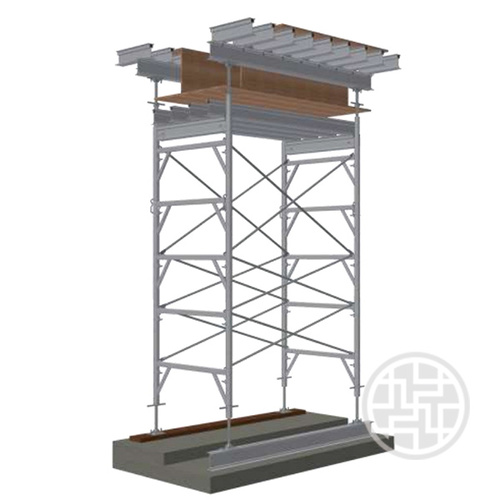

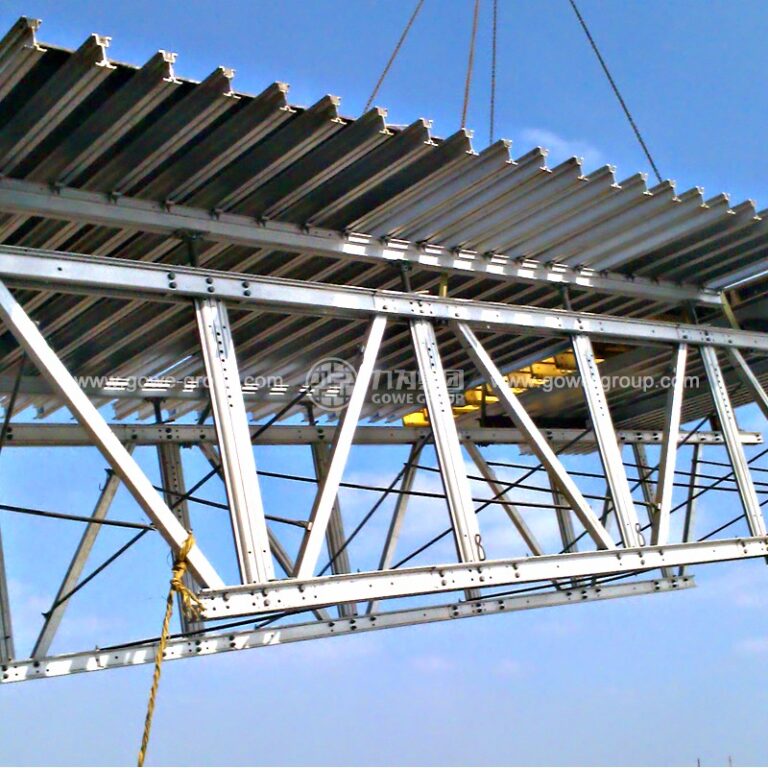

System Components & Technical Specifications: 🔩 Main Frame Structure Vertical Posts:Support the vertical load of the entire platform. Made of 50×50×3mm hot-dip galvanized square tubes, with 8mm thick steel connecting plates. Available lengths: 4m / 6m. Diagonal Braces:Connect inner and outer...
