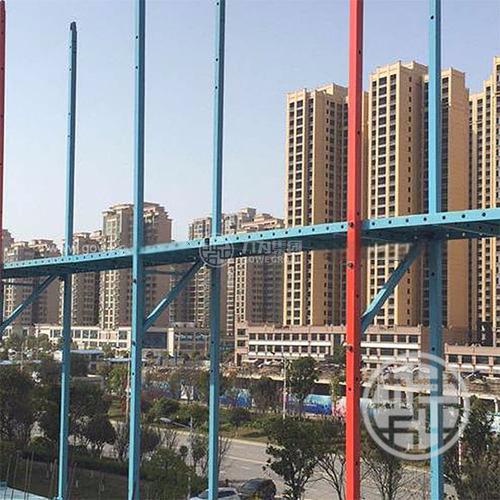

System Components & Technical Specifications: 🔩 Main Frame Structure Vertical Posts:Support the vertical load of the entire platform. Made of 50×50×3mm hot-dip galvanized square tubes, with 8mm thick steel connecting plates. Available lengths: 4m / 6m. Diagonal Braces:Connect inner and outer...

Application Scenarios Support for working platforms and safety screens Structural reinforcement for smart climbing systems Temporary support structures in large-scale construction projects

System Components Upper and Lower Hanging Point Trusses Wall Hanging Parts Electric Hoist and Sprocket Set Adjusting Basket Bolts and Springs

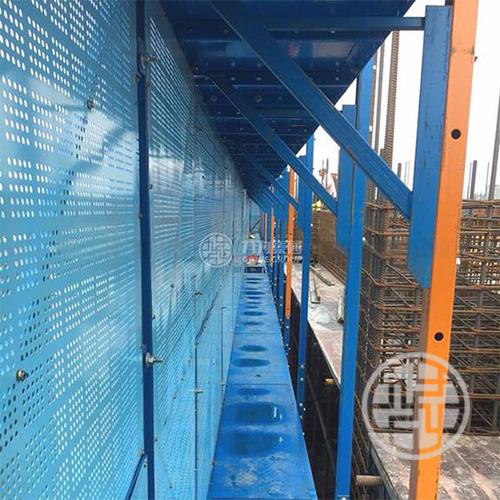

Application Scenarios Edge protection for working platforms Safety barriers for climbing frame systems Fall prevention on high-rise construction platforms

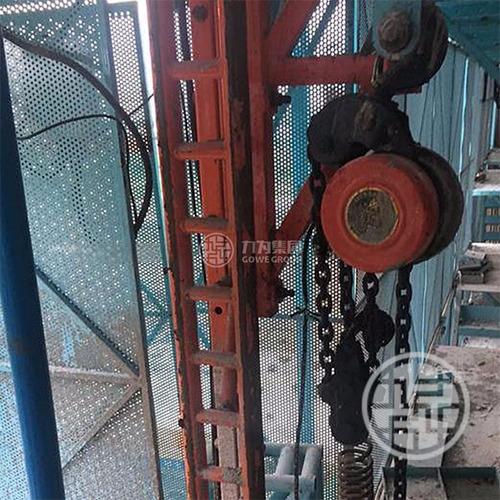

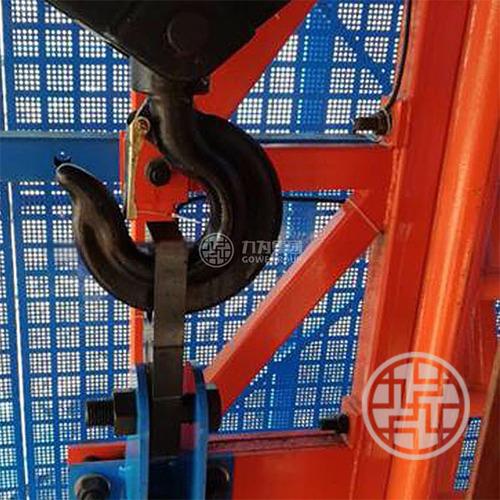

Forward-Hanging Circulation Lifting: The main body of the electric hoist is suspended on the upper truss, the lower hook is connected to the lower truss, and the end of the chain is fixed to the wall hanging point. The electric hoist moves freely by circulating the chain. Flexible Movement: The electric...

Product Structure Upper and lower hanging point trusses Wall hanging parts Electric hoist Hoist sprocket set Adjusting basket bolts and springs

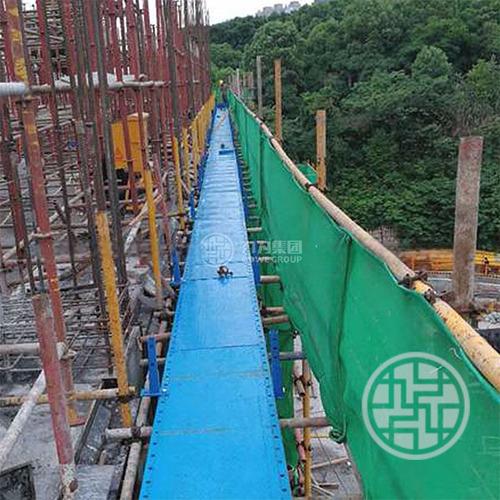

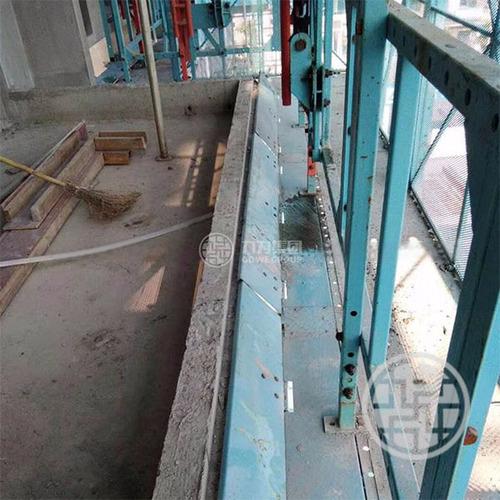

Product Specifications Width: 600mm Length Options: 2000mm, 1500mm, 1000mm (customizable as needed)

Specifications Length: 4 meters and 6 meters Material: 50×50×3mm square tube

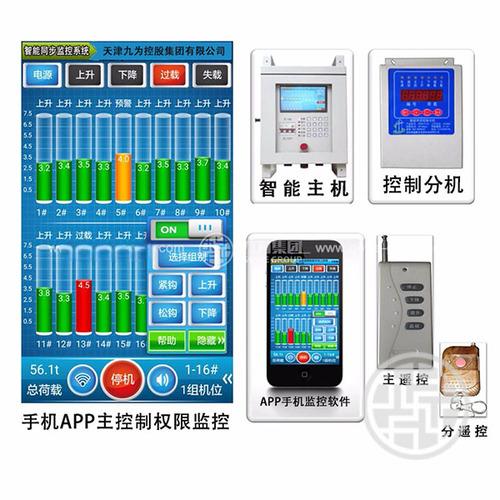

Main Control Box: Controls the simultaneous lifting and lowering of the entire group of frame points, ensuring coordinated operation. Sub-Control Box: Independently controls each lifting device and transmits the load signal to the main controller. Sensor: Collects the load value of each point in real...

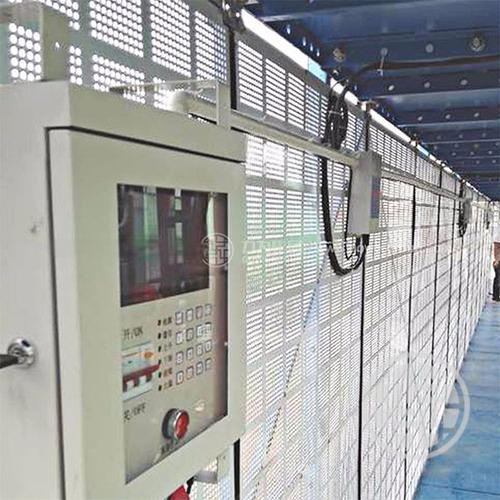

System Components Main Control Box: Manages the synchronous lifting of the entire frame system. Sub-Control Box: Controls each lifting device and transmits load signals to the main controller. Load Sensor: Collects real-time load data at each point. Remote Control: Provides manual command transmission...
